Tycon Power TP-DCDC-A2456GD-BT | 22-35VAC or VDC Input, 56V 802.3bt Gigabit PoE Output, 90W
Product Highlights
Model#: TP-DCDC-A2456GD-BT
Sku: IT4619
MSRP: $269.99
In Stock
Your Price: $269.99
MODEL: TP-DCDC-A2456GD-BT

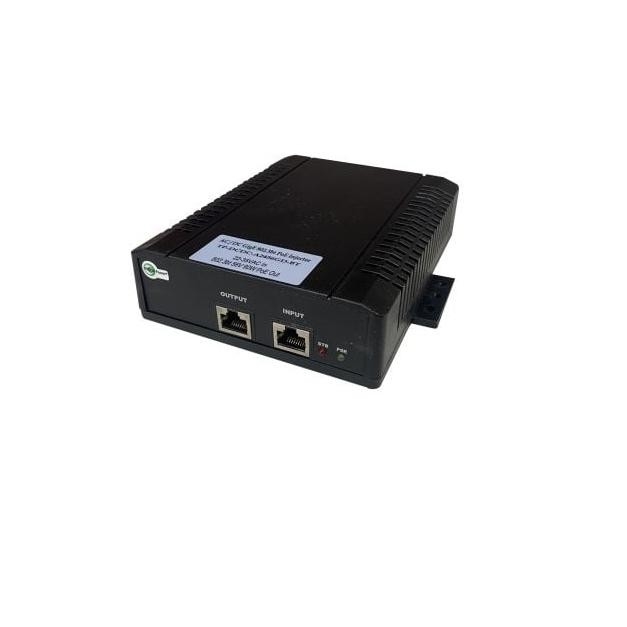

The TP-DCDC-A2456GD-BT is a 5Gbps high power DC to DC converter and PoE injector designed to accept a wide range of input voltages, from 22-35VAC or VDC. This device is built to handle a wide operating temperature range of -40 to +70°C, making it suitable for various challenging environments. It delivers a high power 802.3bt 90W output, ensuring efficient and reliable power delivery for demanding applications.
To ensure maximum flexibility, the unit features dual AC/DC inputs, allowing seamless connections to different power sources. This design enhances reliability by providing backup power if one source fails. The green DC connector accepts wires up to 12AWG, offering secure and reliable connections. Additionally, the “FG” input provides chassis or earth ground, further enhancing safety and stability.
Moreover, this fan-less device utilizes natural air flow for cooling, which reduces maintenance requirements and increases reliability. The robust design includes DIN rail adapters, facilitating easy mounting to a standard DIN rail commonly used in industrial installations. For added convenience, you can also mount it on a wall, allowing for versatile installation options.
Ideal for high-demand network environments, this DC to DC converter and PoE injector support modern, high-bandwidth applications. It guarantees reliable power delivery and data transmission, making it suitable for telecommunications, industrial automation, and remote monitoring systems. Whether you deploy it in urban centers or remote locations, the TP-DCDC-A2456GD-BT offers exceptional performance and reliability.
Features – DC to DC Converter
- DC to DC Converter
- 22-35VAC/VDC Input, 802.3bt 90W Output
- Industrial Temperature Range: -40 to +70C
- Up to 5Gigabit Data Passthru with Surge Protection
- DIN Rail Mounting (Adapters Included)
Applications
- 802.3bt PoE from Legacy 24VAC Power Sources
- 24VDC Remote Power Systems
- IEEE802.3bt Industry Standard Device Power from Batteries
- PoE Lighting Applications
Specifications TP-DCDC-A2456GD-BT
| Input Voltage | 22 to 35VAC 50/60hz or 22 to 35VDC |
| Input Current | 4.42A @ 24VAC IN (Full Load) 4.40A @ 24VDC IN (Full Load) |
| Output Voltage | IEEE802.3bt 56VDC ; Load Reg = 5%, Line Reg = 1% |
| Output Current / Max Watts | 1.6A / 90W |
| Ripple & Noise | 1% |
| Efficiency | >80% 22-35V Input |
| Protections | Short Circuit, Reverse Voltage |
| Over Current Protection | 802.3bt Limits ; Auto Recover |
| Low Voltage Detect (LVD) | Device with stop drawing all current when input voltage drops below 33.2VDC |
| Misc Protections | Short Circuit, Reverse Voltage |
| Data PassThrough | 10/100/1000/5000Mbps ; Gigabit |
| Data Protection | Pin to Pin (1-2, 3-6, 4-5, 7-8) Clamp Voltage: 3.3V ESD, IEC61000-4-2: +/- 30KV contact and air EFT, IEC61000-4-4: 40A (5/50us) Lightning, IEC61000-4-5: 15A (8/20us) |
| MTBF | 135,326 Hrs |
| Safety Standards | TUV EN62368-1 |
| EMC Standards | FCC Class B ; EN55032 Class B |
| Connections | Removable Wire Terminal |
| Wire Size | 12AWG Max |
| LED Function | Green Power LED = Valid 802.3bt Detection Red STB LED = Input Power OK |
| Mounting | Wall Mount or DIN Rail (Adapters Included) |
| Operating Temperature | -40C to +70C (-40F to 158F) |
| Humidity (RH) | 5% - 90% Non-Condensing |
| Dimensions (LxWxH) | 140 x 150 x 40 mm (5.5” x 5.9” x 1.6”) |
| Weight | 0.66kg (1.45lb) |
